PREFORM INJECTION · INDIA
A preform cell built around the cycle.
A 400-tonne injection cell matching the mould, PET plasticising, side-entry take-out and post-mould cooling to the required preform.
THE PROJECT LOGIC
The product
sets the direction.
01 / Production brief

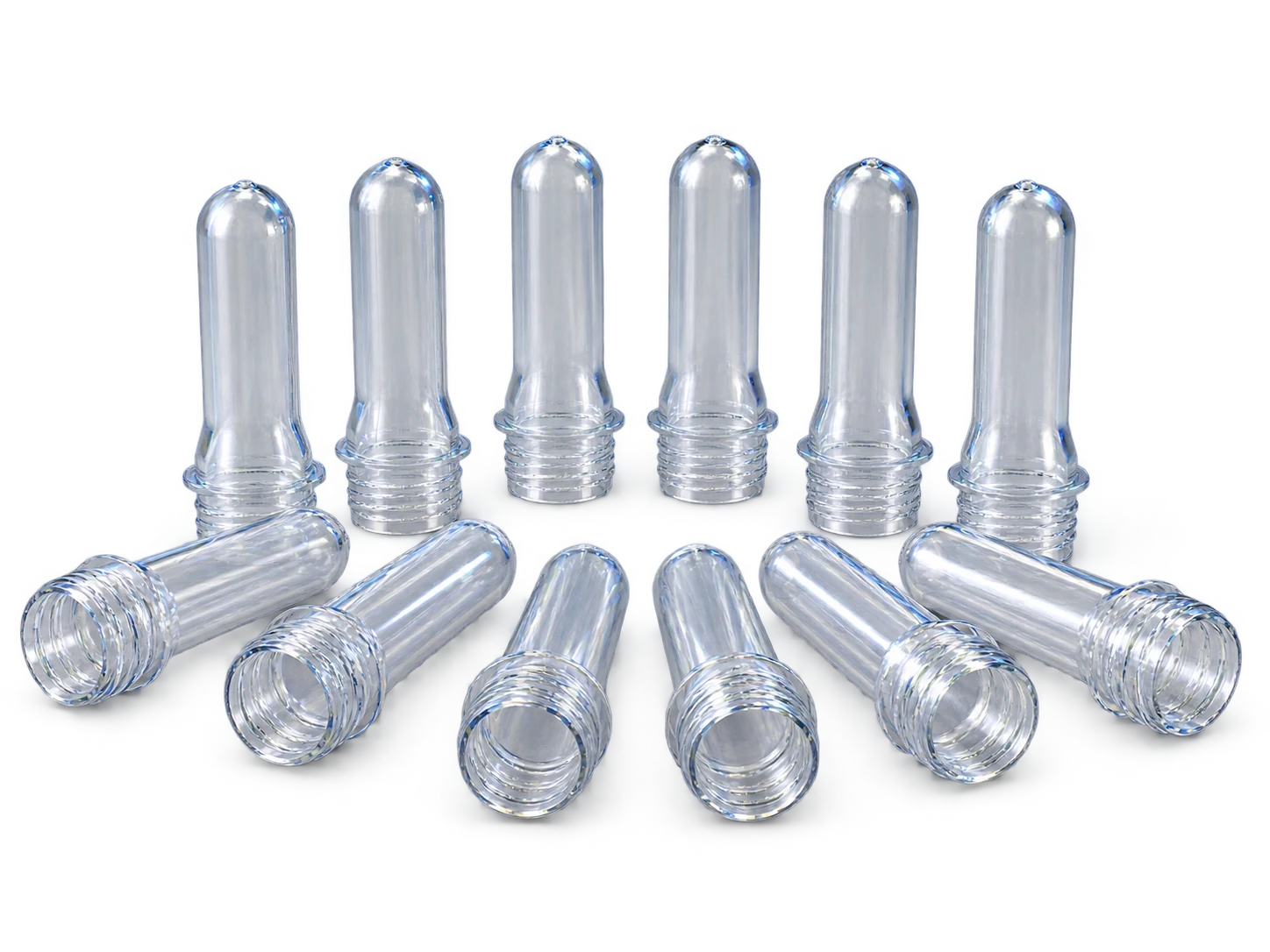

Produce lightweight 9.6 g PET preforms with a 26/22 neck finish, using a high-cavitation cell and a defined production cycle.
02 / Engineering approach
Coordinate the 96-cavity mould, 115 mm PET plasticising screw, take-out sequence and three-stage post-mould cooling. Cooling and handling are part of the cell—not separate afterthoughts.
03 / Delivered scope
A matched injection, take-out and cooling scope for the specified preform, with downstream packing treated as its own line interface.
PROJECT SPECIFICATION
Product, equipment
& output.
| Parameter | Project specification |
|---|---|
| Machine clamping force | 400 tonnes |
| Mould cavities | 96 |
| Preform weight | 9.6 g |
| Neck finish | 26/22 |
| Cycle time | 8.5 seconds |
| Specified daily output | 10 tonnes/day |
| PET plasticising screw | 115 mm |
| Cooling | Three-stage post-mould |
Figures describe this project configuration. Output for another product must be assessed against its weight, cycle, cooling and operating schedule.
PROJECT GEOGRAPHY
India
Delivered project in India. Customer identity is kept confidential.
AT A GLANCE
The working sequence.
- 01Material conditioning
- 0296-cavity injection
- 03Side-entry take-out
- 04Post-mould cooling
